Slurm

This document contains a basic introduction to how to use Slurm on the cluster. This should not be considered a complete reference and if you are looking for additional references take a look at UChicago’s Slurm set up can be found at the UChicago CS Slurm How To Page. Note that this reference is for a slightly different cluster than the DSI cluster, but nearly all the information should be the same.

There are two modes of using Slurm: (1) interactively (what this document details) and (2) non-interactively (sometimes called batch).

Prerequisites:

Before starting this, make sure that you are:

Make sure that you are familiar with using a Unix command line. You can find some information here.
Make sure that you have completed all steps in the ssh-cluster-connection doc.

Connecting to the cluster, cluster layout and definitions:

Understand the language of the cluster:
- Cluster: A collection of connected computers which are set up in to share resources (compute, hard drive and memory) so they behave as a single system. These are powerful computers with GPUs, powerful CPUs, and/or lots of memory.
- Nodes: A node is a single computer within the cluster.
- Login Nodes: A node designed to manage logins, no computing jobs should be run on them. In the DSI cluster these nodes begin with fe.
- Compute Nodes: A node which was created for high-performance computing. They have powerful GPUs, CPUs and lots of memory. On the DSI cluster there are multiple designations, such as g, h, i, j, k, l and m. Nodes with matching prefixes have similar hardware.
- Slurm Slurm is a queue management system which manages access and resources among users of a system. When a user wishes to run an intensive job they submit a resource request and when the resources become available Slurm provides access.
Connect to the login node of the cluster using ssh fe.ds.
- If this works you should see a change in your command prompt. If there are any notifications or messages from ssh this probably means that you did not connect.
Verify that you are in your home directory using the pwd command. Running this command should return /home/USERNAME where USERNAME is your CNET ID.
Understand where data should be place:
- Home directories are limited to 20 GB of storage.
- Home directories are only accessible by you, so they should be not be used for any data that needs to be shared with anyone else
- The directory /net/projects or /net/projects2 shows shared project directories. These are limited access and you need to contact techstaff if you do not have access to a directory required for a project. Unix user groups are used to manage access. This is the primary location where data should be placed.
- The directory /net/scratch and /net/scratch2 are open areas where anyone can put anything. Note that this is ephemeral. Any data put here may be deleted at any time.
- All of the /net directories are network storage drives and are available on any node in the cluster.

Cloning a Repository on the cluster

A common use of the cluster is running code from a github repository on it. If you have followed the instructions on how to set up ssh for the cluster you should abel to quickly clone any repo you have access to on github.

Connect to the login node via ssh if you have not already.
Verify that you can access github by typing ssh -T git@github.com which should return your username. If it does not it means that ssh is not set up properly. Please use the ssh docs above to identify which system is not st up correctly.
Verify your current working directory by typing pwd and checking to make sure it says \home\CNET ID. If this is not your current working directory type in cd to return to your home directory.
Go to the repository github page, click the dropdown on the green button that says ‘Code’, select ‘SSH’ and copy the value.
Type in git clone COPIED_VALUE to clone the repo to your home directory. Verify that there were no errors printed and that the repo was properly cloned.

Install Micromamba for Environment Management

Connect to cluster via ssh
In a terminal on the cluster:

cd ~
curl -Ls https://micro.mamba.pm/api/micromamba/linux-64/latest | tar -xvj bin/micromamba
./bin/micromamba shell init -s bash -r ~/micromamba
source ~/.bashrc
micromamba config append channels conda-forge

You can accept the defaults. Make sure you select yes when it asks to run conda init. This will ensure micromamba is activated by default. Re-open and close your terminal.

Create a new environment
```
micromamba create -y --name PROJECT_NAME python=3.13
micromamba activate PROJECT_NAME
```
Where PROJECT_NAME is the name of the project you are working on. Now when you log into ai cluster, just make sure you run conda activate PROJECT_NAME.
Ensure VS Code uses the correct python environment. When a python file is open and selected, click the Python version number on the bottom right and select the interpreter for PROJECT_NAME. If it is not listed, the path is: /home/USERNAME/micromamba/envs/PROJECT_NAME/bin/python where USERNAME is your CNET ID.
Ensure VS Code uses the correct kernel for Jupyter notebooks. First, install ipykernel in the PROJECT_NAME environment:
```
micromamba install -n PROJECT_NAME ipykernel --update-deps --force-reinstall
```
With a Jupyter notebook open, click the Python version number in the upper right and select the kernel for PROJECT_NAME. You may need to refresh the list of available kernels using the icon in the upper right of the menu.
You should now be at a point where you can easily connect to the cluster with VS Code, use jupyter notebooks, and attach to compute nodes for more intensive jobs. This is enough for a lot of tasks, but if you become bothered by long running jobs crashing due to internet connection outages or running out of time on the compute node you will need to leverage sbatch.

Set up VS Code to use the cluster

The instructions below provide specific instructions for setting up VS Code. Before preceding, please make sure that it is installed.

Traditionally, one would ssh in a terminal and be restricted to command-line text editors like Vim. We can use the extension, Remote - SSH allows us to act like we are developing on our local machine as normal for the most part and has less of a learning curve. Information on the extension can be found here.

Install Remote - SSH. Click ‘Extensions’ on the menu at the left side of VS Code (its icon is four squares with the top right one pulled away). Search for and install Remote - SSH.
We want to allow common extensions to be used on the cluster. Open the command palette (ctrl+shift+p / command+shift+p / View -> Command Palette…) and search for Open User Settings (JSON). If it is empty, paste the following:

{
"remote.SSH.defaultExtensions": [
    "ms-toolsai.jupyter",
    "ms-toolsai.jupyter-renderers",
    "ms-python.python",
    "ms-python.vscode-pylance"
]
}

Otherwise, make sure to add a comma to the end of the current last item and add the following before the }:

    "remote.SSH.defaultExtensions": [
        "ms-toolsai.jupyter",
        "ms-toolsai.jupyter-renderers",
        "ms-python.python",
        "ms-python.vscode-pylance"
    ]

Follow the instructions here to set up with the following modifications:
- In “Connect to a remote host”, try Remote-SSH: Connect to Host... and you should see fe.ds as an option. Select it. Otherwise, you can try typing in fe.ds.
- (If you are asked, though sometimes this will be detected by VS Code) The type of server is Linux.

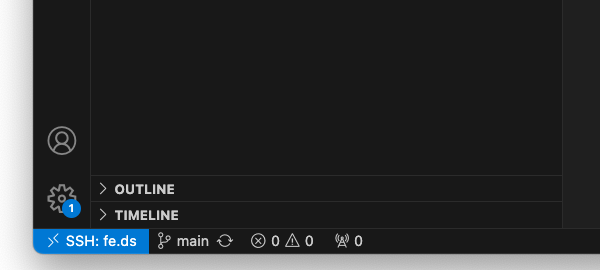

The (usually green) box at the bottom left of your VS Code window should now say SSH: fe.ds to signify you are using the SSH extension and connected to the host fe.ds as in the image here:

Assuming you have correctly cloned the repo on the cluster you can you click File then Open Folder and select your repository folder.
Close the window. Now if you open a new VS Code window and select from recent, the one called `REPOSITORY_NAME [SSH: fe.ds] will take you right to the login node of the cluster with your previous configuration.

Never run any large code jobs when connected the login node. All python code should be run only after connecting to a compute node!

Step 2: Connect to a Compute Node with VS Code

Open a terminal / command prompt. Connect to the cluster using ssh fe.ds.
You should now be connected to the cluster in a login node, which is fine for small tasks and coding. To get access to a powerful compute node, you must request access through Slurm. Request an interactive session with a command like: srun -p general --gres=gpu:1 --pty --mem 1000 -t 90:00 /bin/bash. Once you have been your request has been granted, your command prompt will change to something like USERNAME@hostname where hostname is probably like g004.
Now your terminal is connected to a compute node. (NOTE: If you did this in a terminal in VS code, just that terminal will connect to a compute node. The rest of VS Code functionality will be run on the login node still. To connect VS code features like python debug and notebook editing to the compute node follow along).
Back in VS Code, open the command palette (ctrl+shift+p / command+shift+p / View -> Command Palette…), search for Remote-SSH: Connect to Host.... Select it and type in as your host HOSTNAME.ds replacing the HOSTNAME with the hostname from above.
Your VS Code should now be connected to the compute node. To verify the You’ll have to open the repository folder (see below instructions for cloning). But now you can take advantage of the computational power from the node and the nice features of VS Code (using notebooks, python debugging, etc.)

Appendix

Common errors and troubleshooting moved to Troubleshooting
